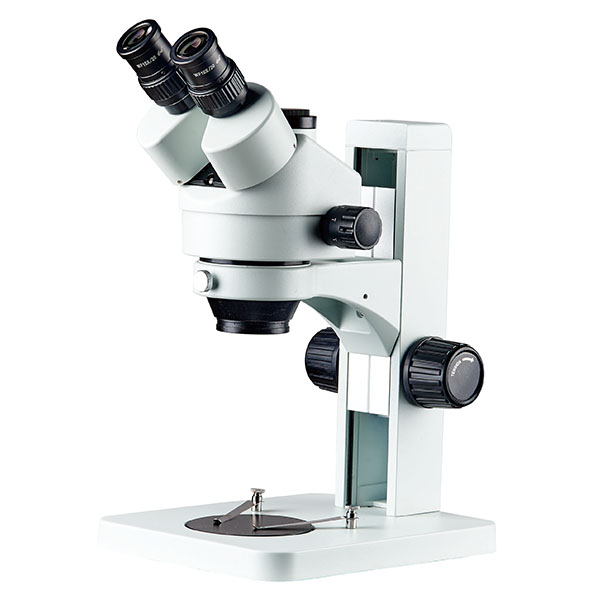

Trinocular stereo zoom microscope track stand with stage plate clips for observing

SZM7045T-B4
stereo zoom microscope
trinocular track stand

SKU: SZM7045T-B4 Category:

Description

Trinocular stereo zoom microscope track stand with stage plate clips for observing
stereo zoom microscope the zoom-stereo microscope optical structure of common primary objective lens. The two beams after imaging the object are separated by two sets of intermediate objective lenses-the zoom lens, and they form an integrated viewing angle and pass through their respective eyepieces For imaging, its magnification change is obtained by changing the distance between the intermediate lens groups.

Magnification: 7X-45X, 3.5X-270X with optional eyepieces and objectives
Eyepiece: WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece: WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm
Main Body:
Trinocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective: 0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1
Aux Lens: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X

stereo zoom microscope Track Stand
Vertical Height:300mm
Mounting Size:φ76mm
Focusing Distance:106mm
With φ95mm B/W Plastic Plate and Paired Clips
Base Size:200x255x22mm.

spare parts list:

trinocular microsscope body
trinocular zoom body
Focus holder 72mm 32mm
Focus holder Focusing bracket rack 76mm 32mm
microscope stand
track stand microscope

Binocular microscope has two eyepieces like a binocular stereo zoom microscope and an additional third eyetube for connecting a microscope camera. binocular microscope equipped with a lens for photographic recording during direct visual observation. They are therefore a binocular with a moving prism assembly in which light is either directed to the binocular assembly of the microscope or to the camera.

trinocular stereo zoom microscope may have one of several purposes. One purpose is to allow a second viewer access to a specimen at the same time as the person who is mainly using the microscope. This means that an instructor can, for example, look at what a student is seeing to answer a question or to check the accuracy of the student’s observations
Another purpose of a trinocular microscope is to allow the use of technology to either preserve the images seen through the microscope by recording them or projecting them. In the first case, a digital camera or video camera could be connected to the third eyepiece.

stereo zoom microscope application

Suitable for electronic circuit boards, chip packaging, jewelry identification, research phase analysis, micro-precision quality control, assembly, public security, bank trace comparison, teaching demonstration, clinical surgery samples, agricultural selection, textile inspection, breeding industry selection Pathological analysis. observation, assembly and inspection of micro-components and integrated circuits on the production lines of PCB, LCD and other industries, as well as the inspection of precision parts for mechanical finishing.
Meet the requirements of high precision in modern biology, medicine, scientific research, modern electronic industry online detection and other science and technology industries.
pdf trinocular stereo zoom microscope track stand
