trinocular microscope single arm boom stand zoom magnification

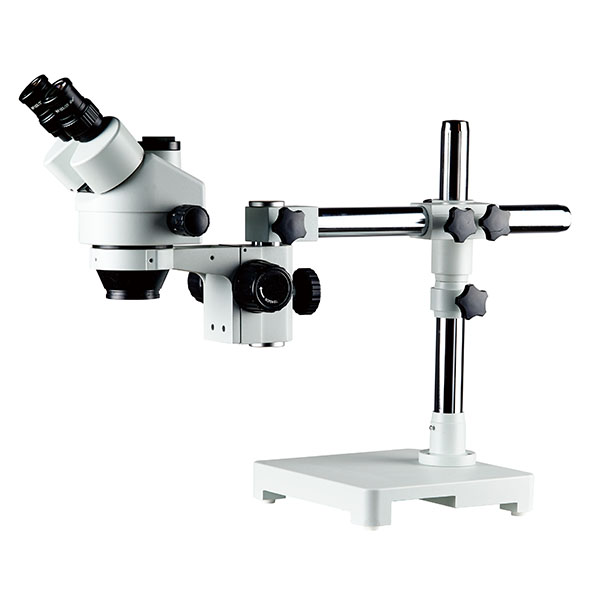

SZM7045T-STL1 trinocular microscope
boom stand single arm
trinocular

SKU: SZM7045T-STL1 Category: Zoom microscope

Description

trinocular microscope zoom magnification trinocular single arm boom stand.

stereo zoom microscope the zoom-stereo microscope optical structure of common primary objective lens. The two beams after imaging the object are separated by two sets of intermediate objective lenses-the zoom lens, and they form an integrated viewing angle and pass through their respective eyepieces For imaging, microscope magnification change is obtained by changing the distance between the intermediate lens groups.

trinocular microscope specificaton

Magnification: 7X-45X, 3.5X-270X with optional eyepieces and objectives
Eyepiece: WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece: WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm

Main Body:
Trinocular microscope head, 45° inclined, 360° rotatable, can be locked in any position desired
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective: 0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1
Aux Lens: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X.

product
product
product
product

Boom Stand;
Expand the scope of operation and observe the object in any direction
Vertical Post:380mm
Diameter:φ32mm
Horizontal moving:235mm
Base Size:230x230x40mm
With 76mm32mm Focusing Mount focus rack
pdf trinocular stereo microscope

Hits: 9

Parts

Stereo Microscope Parts and Functions

two lenses aligned in a way that brings a 3D magnification on the specimen, provides a three-dimensional view of a specimen, dissecting microscope application plants, animals, crystals, circuits, coins, jewelry, textiles, and watches.

It has three key parts: body, focus block, and viewing head/body. And stand

Body/viewing head – It houses the optical parts in the upper section of the microscope.

Focus block – It attaches the head of the microscope to the stand and focuses it.

Stand – It supports the microscope as well as houses integrated illumination.

Optical Parts

Eyepiece Lenses – These are situated at the top of the microscope.

Optional eyepieces – It has varying power ranging between 5X and 30X.

Eyepiece tube – It keeps the eyepieces in place; situated just above the objective lens.

Diopter adjustment ring – It enables possible inconsistencies of the eyesight in one/both eyes.

Objective Lenses –magnify specimen to form a magnified image

Other vital parts

Focus – Stereo microscope has coarse focus controls.

Working stage – it is a place where the specimen to be examined is put on.

Stage clips – They are used only with the absence of a mechanical stage.

Transmitted illumination – It is used to shed light on the specimen.
