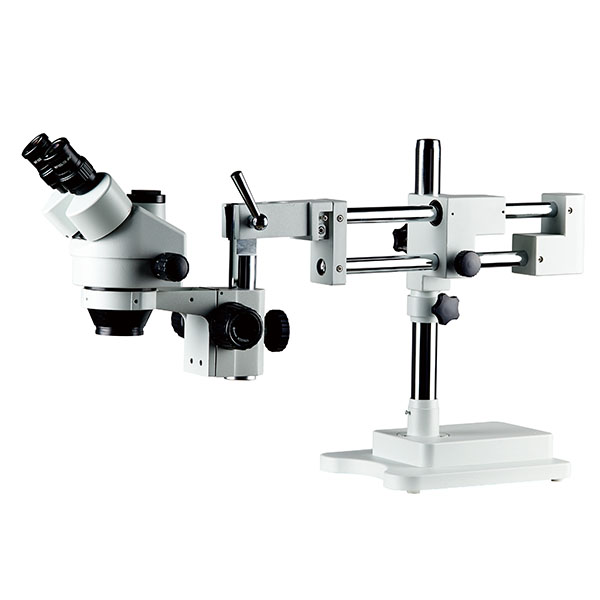

stereo zoom microscope trinocular dual arm boom stand

SZM7045T-STL2
trinocular microscope
zoom stereo microscope
boom stand

SKU: SZM7045T-STL2 Category:

Description

stereo zoom microscope trinocular dual arm boom stand

stereo microscope is an optical microscope that provides a three-dimensional view of a specimen. It is also known by other names such as dissecting microscope and stereo zoom microscope. Dissecting microscope parts include separate objective lenses and eyepieces. As a result, you have two separate optical paths for each eye. The slightly different angling views to the left and right eyes produce a three-dimensional visual. Because it gives the three-dimensional view it is also called as the dissecting microscope.

trinocular microsscope body
trinocular zoom body
focus rack
76mm32mm focus rack
boom stand
boom stand

stereo zoom microscope trinocular dual arm boom stand

Magnification: 7X-45X, 3.5X-270X with optional eyepieces and objectives
Eyepiece: WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece: WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm
Main Body: Binocular head, 45° inclined, 360° rotatable, can be locked in any position
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective 0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1
Aux Lens 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
focus mount:76mm32mm bracket rack.

stereo zoom microscope trinocular dual arm boom stand

microscope stand:
Vertical Post:380mm
Diameter:Ф32mm
Horizontal moving:235mm
Base Size :210x260x50mm
Expand the scope of operation and observe the object in any direction
