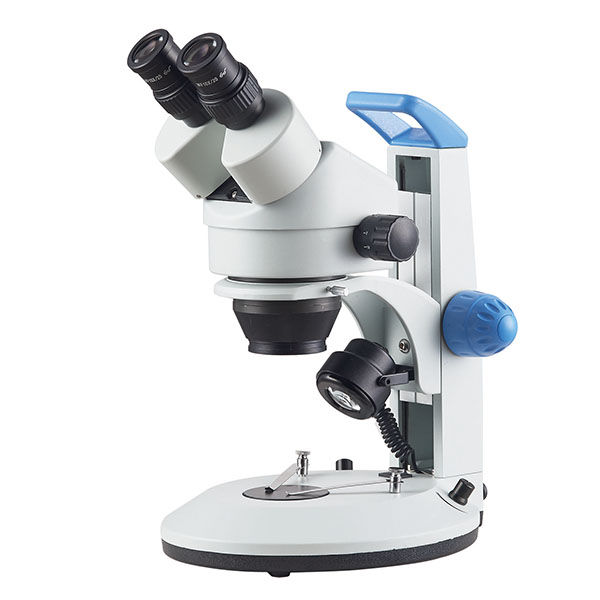

Stereo zoom microscope binocular zoom microscope track stand downlight

SZM7045-2L
binocular stereo zoom microscope
track stand with portable knob
upper and lower light

SKU: SZM7045-2L-BI Categories: ,

Description

Stereo zoom microscope binocular zoom microscope

stereo microscope is an optical microscope that provides a three-dimensional view of a specimen.
stereo  microscope parts include separate objective lenses and eyepieces.
As a result, you have two separate optical paths for each eye.
The slightly different angling views to the left and right eyes produce a three-dimensional visual.
Because it gives the three-dimensional view it is also called as the dissecting microscope.

Stereo zoom microscope binocular zoom microscope charactor

Magnification: 7X-45X, 3.5X-270X with optional eyepieces and objectives.
Eyepiece: WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses.
Optional Eyepiece: WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm.

parts name
parts name
zoom knob
zoom knob
objective lens
objective lens

zoom microscope head

Main Body: Binocular head, 45° inclined, 360° rotatable, can be locked in any position.
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters.
Objective 0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1
Aux Lens 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Focusing Mount: Focusing track mount with vertical working distance 50mm.
Illumination:downlight upper light.

zoom microscope track stand:

Vertical Height:276mm
Mounting Size:φ76mm
Focusing Distance:74mm
Top and bottom LED Illumination with an independent control
Input Power:110v~240v
With φ60mm B/W Plastic & Perspex Plate and Paired Clips
Base Size :225x200x40mm.
