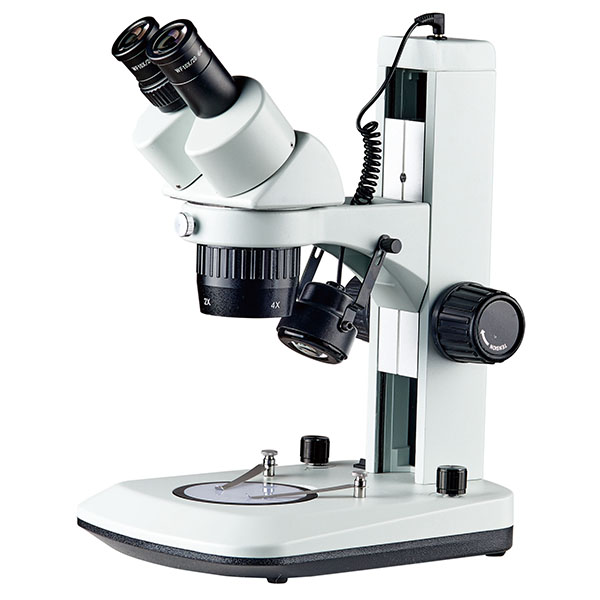

Stereo microscope upper and lower dual light binocular tack stand

ST6024-B9L stereo microscope
binocular eyepiece
upper and lower light

SKU: ST6024-B9L Category: Stereo microscope

Description

Stereo microscope upper and lower dual light binocular.

microscope features;
Magnification: 20X-40X, 10X-80X with optional eyepieces and objectives;
Eyepiece: WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses;
Optional Eyepiece: WF10X/20mm, WF15X/15mm, WF20X/10mm;

Main Body:
Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired;
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters;
Objective: 2X/4X, 1X/3X, 1X/2X;

stereo microscope Track Stand

;
Vertical Height:300mm;
Mounting Size:φ76mm;
Focusing Distance:106mm;
Top and bottom LED Illumination with an independent control;
Input Power:110v~240v;
With φ95mm B/W Plastic & Perspex Plate and Paired Clips;
Base Size:205x275x40mm;

stereo microscope, sometimes called a dissecting microscope  sometimes called a dissecting microscope, is a microscope that offers low levels of magnification with the use of two optical paths via a binocular or trinocular eyepiece. Most stereo microscopes allow the user to magnify a sample somewhere between 2x and 60x, usually including both upper and lower light sources.

binocular microscope is a microscope that offers low levels of magnification with the use of two optical paths via a binocular or trinocular eyepiece. Most stereo microscopes allow the user to magnify a sample somewhere between 2x and 60x, usually including both upper and lower light sources.
