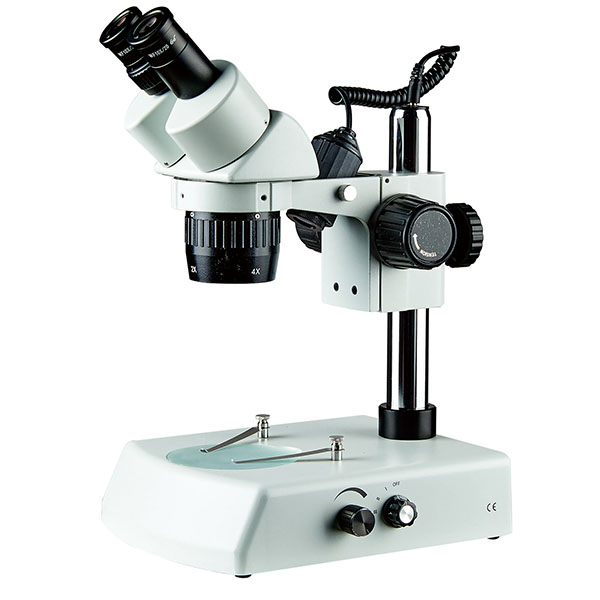

Stereo microscope pillar stand Transmitted and reflected light pole stand

ST6024-B2 Transmitted and reflected light
stereo microscope upper and lower light

SKU: ST6024-B2 Category: Stereo microscope

Description

Stereo microscope pillar stand Transmitted and reflected light pole stand
stereo microscope is an optical microscope that provides a three-dimensional view of a specimen. It is also known by other names such as dissecting microscope and stereo zoom microscope. Dissecting microscope parts include separate objective lenses and eyepieces. As a result, you have two separate optical paths for each eye. The slightly different angling views to the left and right eyes produce a three-dimensional visual. Because it gives the three-dimensional view it is also called as the dissecting microscope.
Magnification: 20X-40X, 10X-80X with optional eyepieces and objectives
Eyepiece: WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece: WF10X/20mm, WF15X/15mm, WF20X/10mm
Main Body:
Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective: 2X/4X, 1X/3X, 1X/2X
Microscope stand
Vertical Post:240mm
Diameter:φ32mm
Transmission light source 12v/15w Halogen lamp,Brightness independent adjustable base 12v/15 halogen lamp(7w fluorescent lamps optional)
With φ95mm B/W Plastic & Perspex Plate and Paired Clips
Base Size:200x255x60mm
With 7632mm Focusing Mount

Hits: 1

Additional

Dual Power Stereo Microscope, 20/40X and post mount

dual-power stereo microscope provides you with 20x or 40x magnification simply by rotating the 2x/4x objective. Use it to look up close at tiny water protozoa, mineral crystals, circuit boards,





Objective Lenses: Paired objectives. Magnification is changed by rotating objective turret 90° to positive click stops. Viewing head rotates 360°, locks in place by tightening set screw.

1x & 3x objectives or 2x & 4x objectives.

Paired widefield 10x eyepieces, 45° inclined, diopter adjustment, interpupillary adjustment from 55mm to 75mm.

Eyepieces equipped with reticle holder/retainer to accept reticle with 23mm O.D.

Viewing head rotates 360°, adjusts up or down on post mount to accommodate different size specimen.

Magnification changed by rotating objective turret 90° to positive click stops.

Hits: 1
