stereo microscope Dual power dual magnification with stage clips

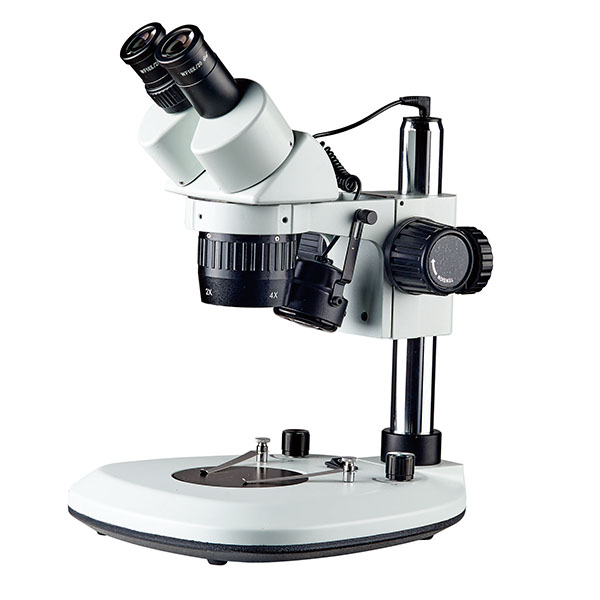

ST6024-J4L stereo microscope
dual power magnficiation
pole stand

SKU: ST6024-J4L Category:

Description

stereo microscope Dual power dual magnification with stage clips
Dual power stereo microscope provides 2 levels of magnification simply by rotating the objective.. eyepiece magnification marked outside. The total magnification of a microscope = magnification power of the ocular lens x magnification power of the objective lens.
dual power stereo microscope has two set magnifications. The built-in objective lens provides two magnifications that are multiplied by the eyepieces.For example, if the dual power stereo microscope has a 1x and 3x objective lens built into it, when using 10x eyepieces the total magnification is 10x and 30x. With dual power stereo microscopes the only way to change the magnification is by purchasing a different pair of stereo microscope eyepieces, such as 5x or 20x.

stereo microscope

Magnification: 20X-40X, 10X-80X with optional eyepieces and objectives
Eyepiece: WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece: WF10X/20mm, WF15X/15mm, WF20X/10mm
Main Body:
Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective: 2X/4X, 1X/3X, 1X/2X
Pole Stand
Vertical Post:240mm
Diameter:φ32mm
Top and bottom LED Illumination with an independent control
Input Power:110v~240v
With φ95mm B/W Plastic & Perspex Plate and Paired Clips
Base Size:285x238x40mm
Focusing Mount FR7632 focus block rack
