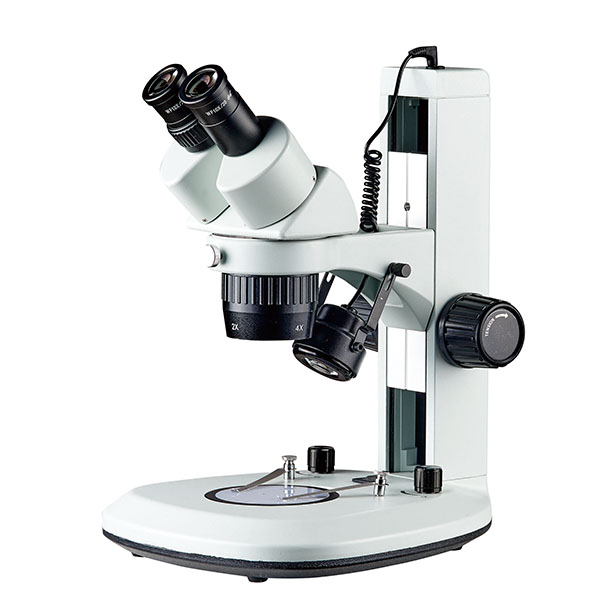

stereo microscope 2 level dual magnification track stand

stereo microscope dual magnification
track stand
top and bottom light

SKU: ST6024-J3L Category:


stereo microscope has two set magnifications. The built-in objective lens provides two magnifications that are multiplied by the eyepieces.For example, if the dual power microscope has a 1x and 3x objective lens built into it, when using 10x eyepieces the total magnification is 10x and 30x. With dual magnification microscopes the only way to change the magnification is by purchasing a different pair of stereo microscope eyepieces, such as 5x or 20x.

stereo microscope dual magnification

Magnification: 20X-40X, 10X-80X with optional eyepieces and objectives
Eyepiece: WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece: WF10X/20mm, WF15X/15mm, WF20X/10mm
Main Body:
Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective: 2X/4X, 1X/3X, 1X/2X

Track Stand
Vertical Height:300mm
Mounting Size:φ76mm
Focusing Distance:106mm
Top and bottom LED Illumination with an independent control
Input Power:110v~240v
With φ95mm B/W Plastic & Perspex Plate and Paired Clips
Base Size:285x238x40mm
