olympus camera adapter c-mount TV adaptor

olympus camera adaptor
c-mount 1x 0.8X 0.63X 0.50X 0.35X
M52-Mount 2.25X
T2-Mount 1.5X 1.2X

Category:

Description

olympus camera adapter c-mount tv adaptor

microscope adapter is a camera adapter to connect CCD/CMOS camera or digital eyepiece to Olympus microscope trinocular port.

olympus camera adapter c-mount tv adaptor

C-mount adapters are supplied with or without optics. The purpose of the optics is to match the c-mount adapter with the size of the sensor within the digital camera in order to maximize the field of view. standard 25.4 mm C-mount,C-Mount adapter is a part that connects a camera to microscope.

olympus camera adapter c-mount tv adaptor

3.1 Convert the Olympus trinocular microscope phototube head port to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch);
3.2 With different built-in reduction lens (1.2X, 1X, 0.8X,0.63X, 0.5X, 0.35X) for achieving better field of view
3.3 from microscope trinocular head(suitable for 4/3, 1, 2/3, 1/1.8, 1/2, 1/2.5, 1/3 or 1/4 inch CCD or CMOS sensor chips);
3.4 Can be installed in UIS trinocular tube such as BX series, BX2 series, CX series, CX2 series, MX series;
3.5 Build of material: anodized aluminum; Telecentric optics with high light efficency;
3.6 Parfocal with different microscope objective lenses; Diffraction limited MTF;
3.7 Aperture totally coupled with UIS microscope objective exit pupil;

olympus camera adapter
2.25X M52-mount; Sensor Size 2.7”,1.8”, 4/3”, 1”
olympus camera adaptor
1.5X T2-mount;
Sensor Size 1.8”, 4/3”, 1”, 2/3”

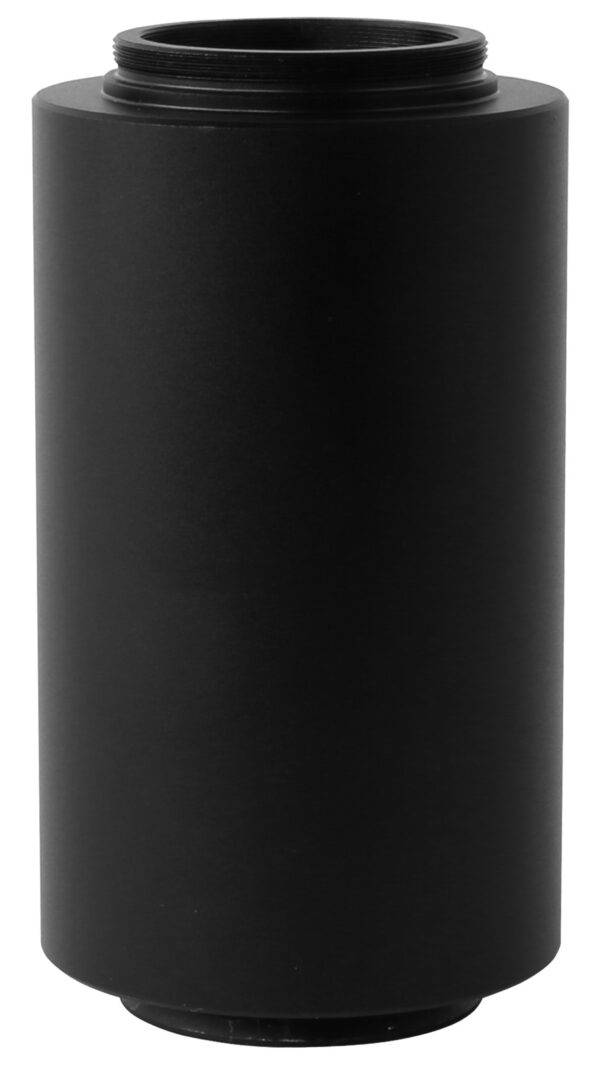

olympus microscope camera adapter 1.2X T2-mount
1.2X T2-mount;Sensor Size 4/3”,1”

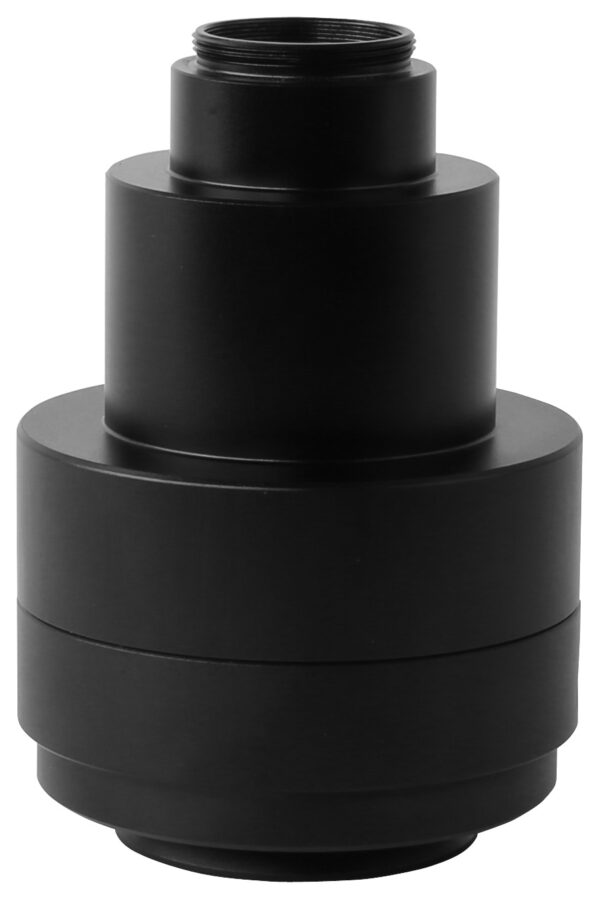

olympus microscope camera adapter 1X c-mount
1X c-mount;Sensor Size 1”, 2/3”

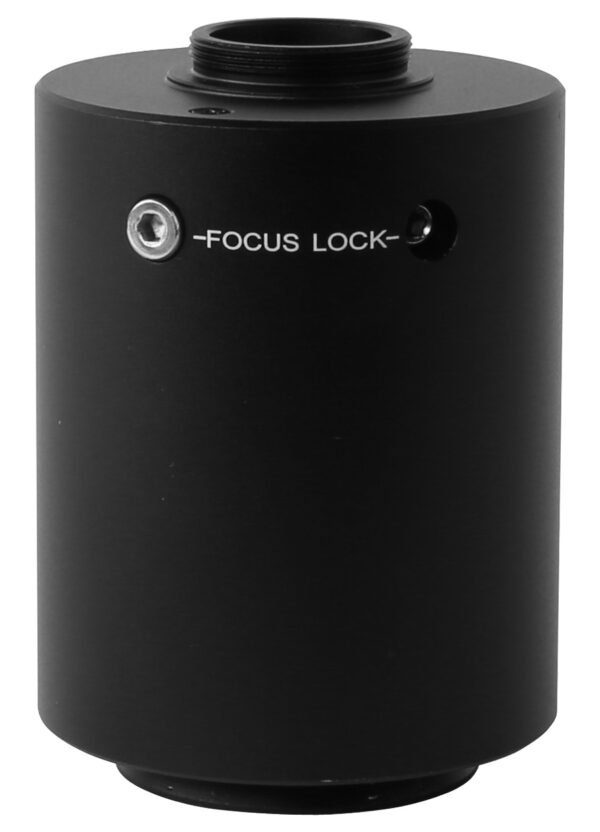

olympus microscope camera adapter 0.8X c mount
0.8X c-mount

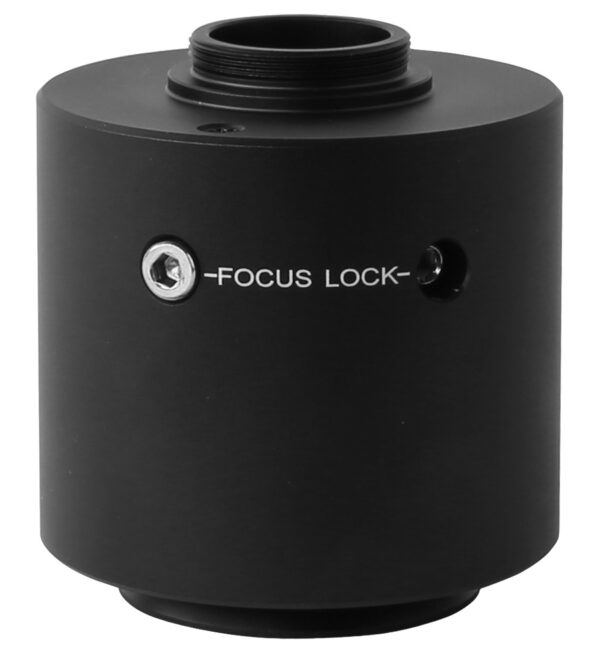

olympus microscope camera adapter 0.63X c-mount
0.63X c-mount
olympus microscope camera adapter 0.5X c-mount
0.5X c-mount
olympus microscope camera adapter 0.35X c-mount
0.35X c-mount
