nikon camera adapter TV adapter 1.0X 0.35X

nikon camera adapter
camera mount:
C-mount 1.0X 0.80X 0.70X 0.55X 0.35X
M52 mount 2.25X
T2 mount 1.50X 1.20X

Category:

Description

nikon camera adapter TV adapter 1.0X 0.35X

microscope adapter is a camera adapter to connect CCD/CMOS camera or digital eyepiece to Nikon microscope trinocular port.

nikon camera adapter TV adapter 1.0X 0.35X

C-mount adapters are supplied with or without optics. The purpose of the optics is to match the c-mount adapter with the size of the sensor within the digital camera in order to maximize the field of view. standard 25.4 mm C-mount,C-Mount adapter is a part that connects a camera to microscope.

nikon camera adapter TV adapter 1.0X 0.35X

3.1 Convert the NIKON trinocular microscope phototube/head/port (have standard 38 mm(1.50 inch) outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch);
3.2 With different built-in reduction lens (1.2X,1X, 0.8X, 0.70X, 0.55X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips);
3.3 Can be installed in UIS trinocular tube such as : NIKON E100, E200, 50i, 55i, 80i, 90i, Ni series, Ti Series, SMZ800, SMZ1000, SMZ15000 biology microscopes and industrial microscopes;
3.4 Build of material: stainless steel material for the C-Mount end and spray-painted aluminum for the phototube end ;
3.5 Telecentric optics with low light deficiency;
3.6 Parfocal with different microscope objective lenses;
3.7 Diffraction limited MTF;
3.8 Aperture totally coupled with CFI microscope objective’s exit pupil;

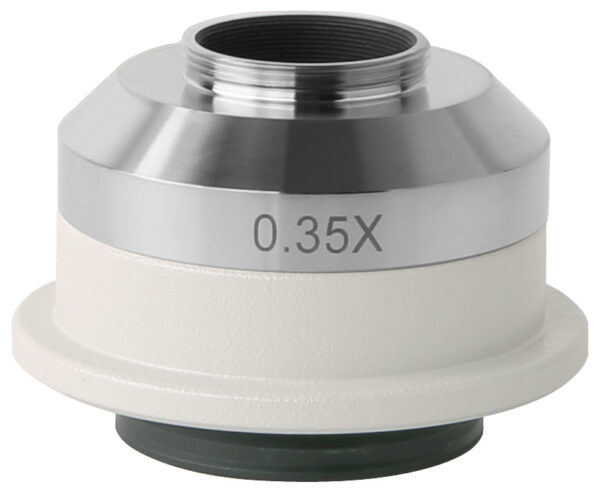

nikon camera adapter
0.35X c mount

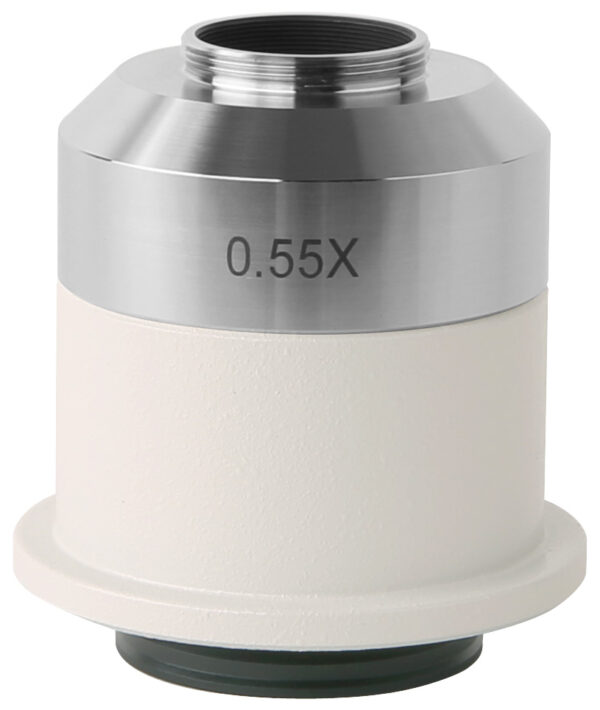

nikon camera adapter
0.55X c mount

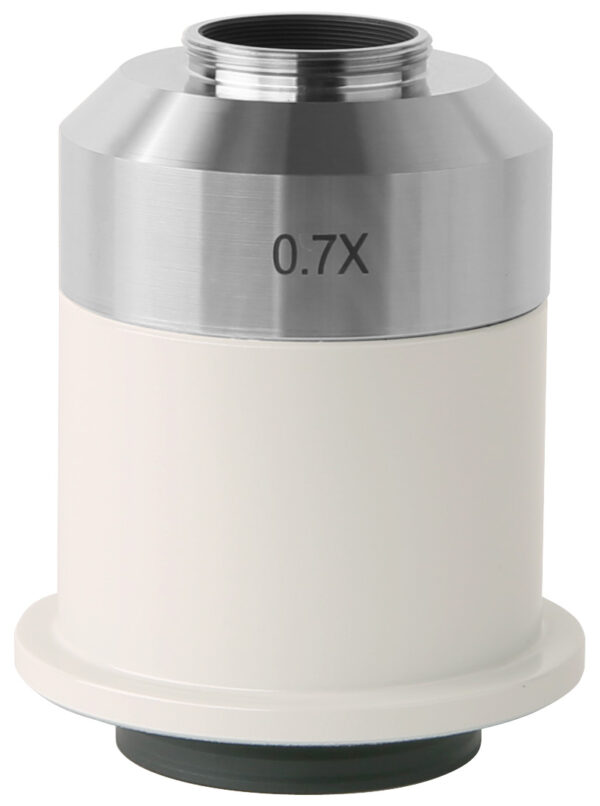

nikon camera adapter 0.70X
0.70X c mount

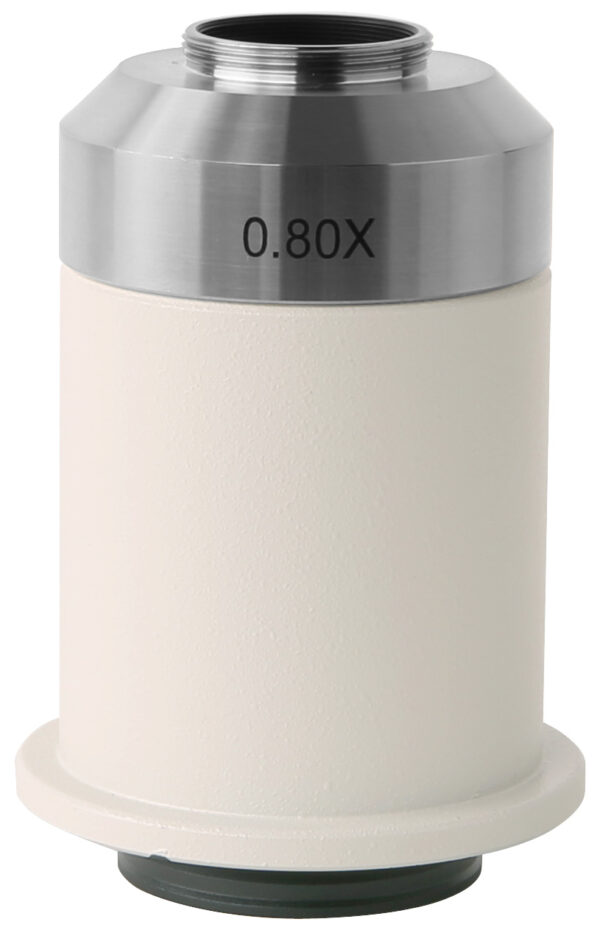

nikon camera adapter 0.80X c mount
0.80X c mount
nikon camera adapter 2.25X M52 mount
2.25X M52 mount
nikon camera adapter 1.5X T2 mount
1.5X T2 mount
nikon camera adapter 1.2X T2 mount
1.2X T2 mount
nikon camera adapter 1.0X c mount
1.0X c mount
