Microscope stand articulated Arm Stand with C-clamp base flexible arm microscope bracket desk clamp

CHSTL6-B articulated Arm Stand
with C-clamp 50mm

Category:

Description

Microscope stand articulated Arm

Microscope stand designed to support microscope body, Microscope stand with characteristics of large lifting range and flexible operation. During the observation process, it can tilt and change various angles, greatly expanding the working space such as industrial assembly and inspection production lines,microscope bracket types boom stand ar post stand bracket stand articulated stand pole stand

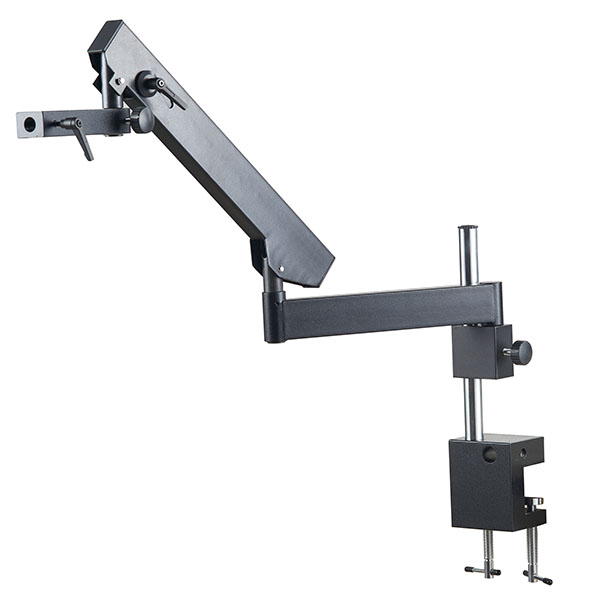

CHSTL6-B Microscope stand articulated Arm with C-clamp

Expand the scope of operation and observe the object in any direction
Vertical Post:400mm
Horizontal moving:770mm
Diameter:Ф25mm
Vertical Post:275mm
Base Size:98x80x116mm
Max Clamping Size:50mm

arculating arm stand
arculating arm stand
Articulating Pillar Clamp 76mm Microscope Stand Adjustable Direction Arm Stereo Zoom Microscopio Accessories For Trinocular.jpg 640x640 2
Articulated-Pillar-Clamp
Articulated-Pillar-Clamp
Microscope stand articulated Arm

Perfect for use in a cramped limited work area, provides easy positioning of medium duty stereo microscopes through all three dimensions and can “fold” up against the wall when not in use. An additional space-saving advantage for this system is that the support arm requires no back space.

The stereo microscope mounting is simple via the industry stereo microscope focus mounts. The base mounting options include a weighted base, a rugged table clamp, a wall mount

Microscope stand articulated Arm Features

Articulating arm with easy positioning in all three dimensions
precision ground, stainless steel vertical pole
Anti-corrosion surfaces of stainless steel, anodized aluminum, plated steel and catalyzed epoxy
tall vertical pole standard, custom lengths available
horizontal extension
standard stereo microscope focus mounts
Adapters available for current and legacy non-bonder stereo microscope focus mounts

pdf articulated Arm Stand with C-clamp
