microscope lighting zone sectional divisional control with 144LED

microscope illumination
zone 4 controll
Brightness adjustable

SKU: YKB144TWH4SG Category: Tag:


microscope lighting zone sectional divisional control with 144LED

The LED brightness is adjustable and soft without flicker and good consistency. This kit is equipped with three screws in the interface port to connect microscope objectives of different diameters. The available voltage of this kit is from AC85 to AC260V. It is an ideal durable cool light source for microscopes.

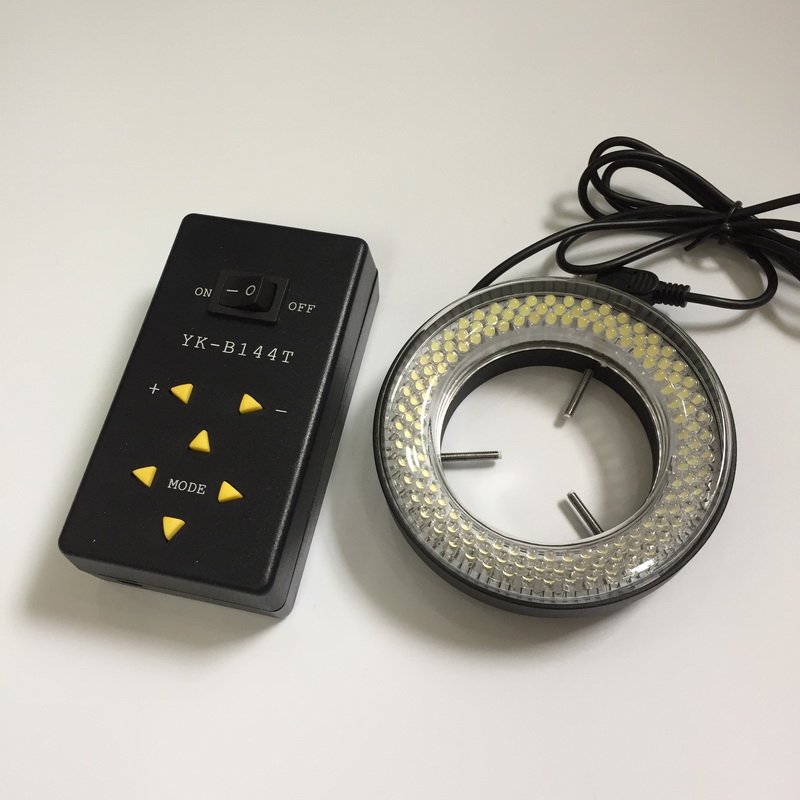

YK-B144T microscope lighting

Zone sectional brightness adjustable divisional control microscope lighting with 144LED
4 divisional control the light and brightness adjustable each section .
Outer diameter:98mm
Inner diameter:61mm
Input voltage:90V-264V
Output voltage:DC12V
Brightness adjust:0-100%
Working distance:40-250mm
Quantity of LED:144PCS
Brightness:20000Lux at height of 100mm
Color of light:6400K

UK Power Plug
UK Power Plug
European power plug
European power plug
american power plug
american power plug
Led ring light for microscope lighting description

Bright white LED bulb ring light for microscopes. The lighting includes led ring light with (60mm or 70mm) inner diameter, 110-240v power adapter. With variable intensity intense and focused shadow-free illumination for stereo microscopes. high luminance and brightness adjustable, special design for stereo microscopes .Have proper in-line configuration, user can install the polariscope when needing. Reduce the ray interfere and enhance the image quality
Advantage: energy saving, brightness adjustable, shadow free illumination

contact us
pdf microscope lighting 4 segment quadrant
