microscope illumination 4 zone segment control ID60mm

YK-B64T
quadrant control
brightness dimmable
60mm inner diameter

SKU: YKB64TWH4SG Category: Tag:

Description

microscope illumination 4 zone segment control ID60mm 64LED ring light
Bright white LED bulb ring light for microscopes light.
The led ring light with 60mm or 70mm inner diameter, with 110-240v power adapter.
With variable intensity intense and focused shadow-free illumination
high luminance and brightness adjustable.
Advantage: energy saving, brightness adjustable, shadow free illumination.

product

product
more
product
information

product

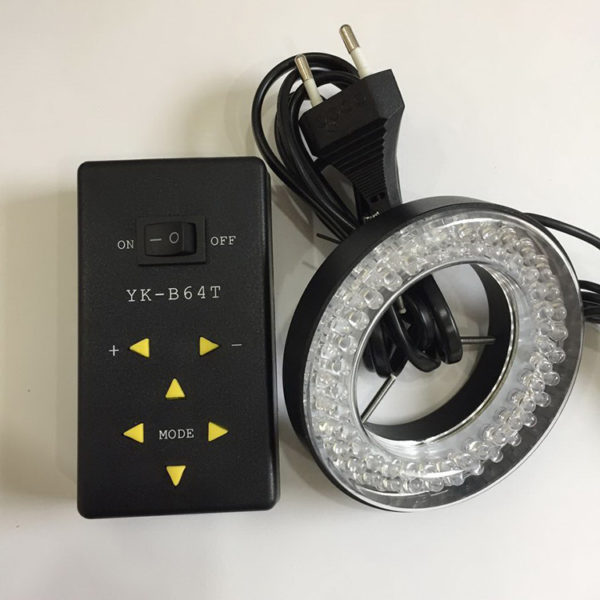

YK-B64T ring light microscope illumination 4 zone

This product has 4 mode to control the light brightness adjustable for each mode.
Specification:
Outer diameter : 98mm
Inner diameter: 61mm
Wattage:3.8W
Input voltage:90V-264V
Output voltage:DC12V
Brightness adjust:0-100%
Working distance:50-250mm
Quantity of LED:64PCS
Brightness:16000Lux at height of 100mm
Color of light:6400K.

microscopes illumination effect and application

Measuring and observing and testing instruments illumination
Viewing and observing instruments and accessories illumination
Laboratory and Measuring and Observing and Testing Equipment.

pdf LED ring light YK-B64T
