microscope head trinocular body continuous zoom microscope

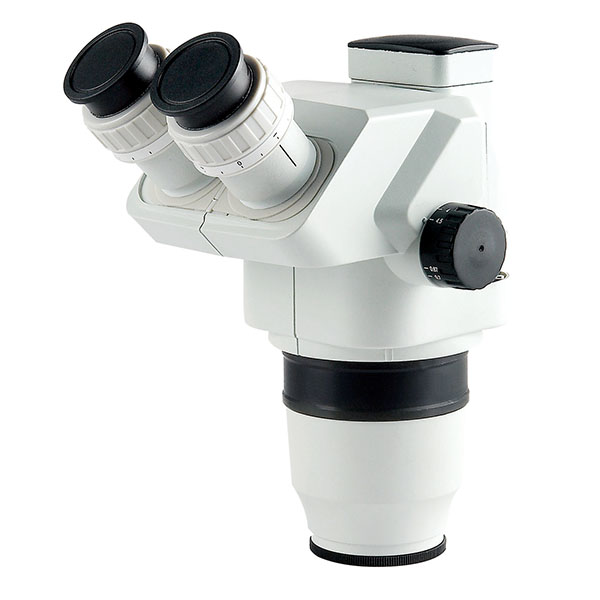

SZL6745TRH trinocular zoom body
microscope head



microscope head trinocular body continuous zoom microscope

Stereo Zoom Microscope is fully coated optical system with super high resolution. The flat field parfocal zoom objectives provide continuously variable magnification from 3.35x-270x depending upon the eyepiece and auxiliary lenses used. It’s an ideal instrument for those who require precision-oriented observation.

microscope head charactor

Magnification: 6.7X-45X, 3.4X-270X with optional eyepieces and objectives
Eyepiece: WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece: WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm.

Main Body:
Trinocular head, 45° or 60° inclined, 360° rotatable, can be locked in any position desired
Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters
Objective: 0.67X-4.5X stereo zoom; Zoom Ratio:6.7:1
Aux Lens: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X;


Microscope head
It is located at the upper portion of microscope. The head portion of microscope is also known as the Body tube.

Microscope head application:
The head portion or body tube of microscope connects the eyepiece to the objective lenses.
If you were to open the body of the microscope you would find a mirror or prism depending on the type and quality of the microscope.
The prism or mirror is used to reflect the light and reorient the image by making it appear right side up.
In compound microscopes with two eye pieces there are prisms contained in the body that will also split the beam of light to enable you to view the image through both eye pieces.
