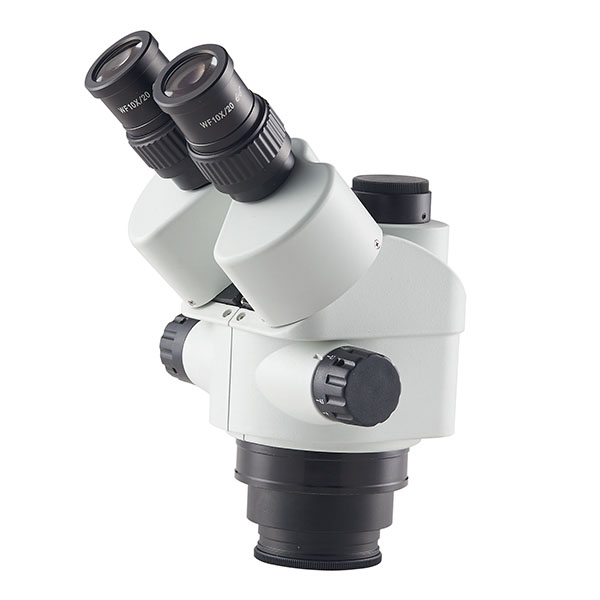

SZM7045NTRH microscope head
microscope body
trinocular
stereo zoom microscope

SKU: SZM7045NTRH Category:

Description

microscope body microscop head stereo zoom microscope trinocular

Microscope head It is located at the upper portion of microscope. The head portion of microscope is also known as the Body tube.

Magnification: 7X-45X, 3.5X-270X with optional eyepieces and objectives
Eyepiece: WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece: WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm;

Main Body:
Trinocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective: 0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1
Aux Lens: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X;

microscope body
microscope body
microscope head
microscope head
zoom knob
zoom knob
Microscope body microscope head application

:
The head portion or body tube of microscope connects the eyepiece to the objective lenses.
If you were to open the body of the microscope you would find a mirror or prism depending on the type and quality of the microscope.
The prism or mirror is used to reflect the light and reorient the image by making it appear right side up.
In compound microscopes with two eye pieces there are prisms contained in the body that will also split the beam of light to enable you to view the image through both eye pieces.
