Description

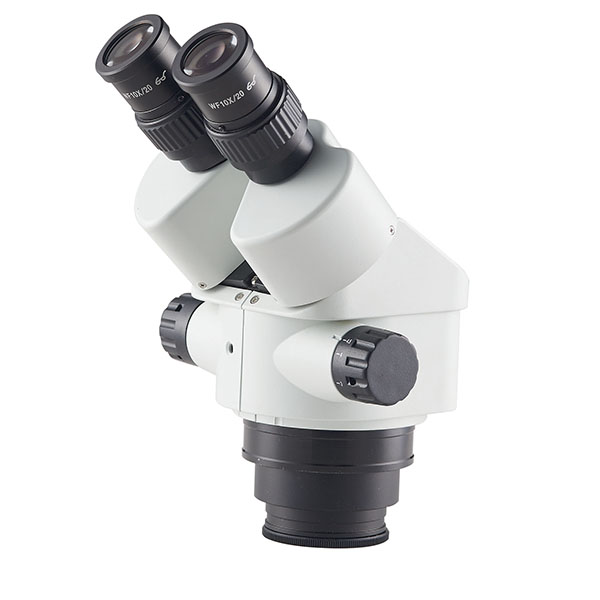

microscope accessories binocular microscope head tube body
Microscope head It is located at the upper portion of microscope. The head portion of microscope is also known as the Body tube.
Magnification: 7X-45X, 3.5X-270X with optional eyepieces and objectives.
Eyepiece: WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses.
Optional Eyepiece: WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm;
Main Body: Binocular head, 45° inclined, 360° rotatable, can be locked in any position;
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective 0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1.
Aux Lens 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X;
microscope head tube body application:
The head portion or body tube of microscope connects the eyepiece to the objective lenses.
If you were to open the body of the microscope you would find a mirror or prism depending on the type and quality of the microscope.
The prism or mirror is used to reflect the light and reorient the image by making it appear right side up.
In compound microscopes with two eye pieces there are prisms contained in the body that will also split the beam of light to enable you to view the image through both eye pieces.
our products category:
microscope spare parts and microscope accessories,microscope head tube body.
