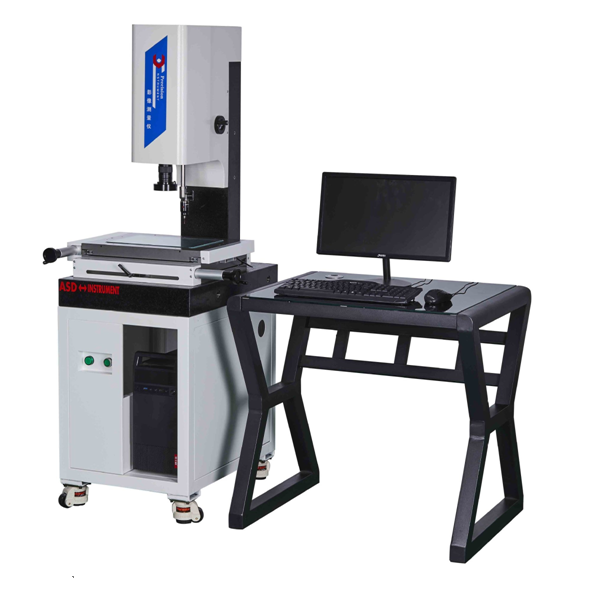

measurement microscope 5040 examination analysis instrument machine

measurement microscope
X50Y40 axis examination analysis instrument machine

SKU: DX5040A Category:

Description

measurement microscope 5040 examination analysis instrument machine

what is measurement microscope, it is surface examination analysis instrument machine.combined an optical microscope with a table capable of precise movement to measure dimensions.

measurement microscope applications;
Surface analysis, Surface examination, Manual examination,
Plastic manufacturing, Metal manufacturing
Implants/ Protheses, Mobile phones, shavers & watches
Micro-electronics, Opto-electronics
Telecom & electronics, Antennae, Telescope optics

measurement microscope Specification
model DX5040
Actual measurement size 500*400*180(mm)
measurement accuracy (3+L/200)μm
Overall dimension (mm) 760*560*960
Total weight 280kg

Mechanical body
Base and column: Jinan granite grade 00 precision, flatness 3μm. Physical stability
Guide rail: FYV type high balance roller cross guide rail
Grating ruler: Xintian precision closed grating ruler, resolution 1 micron
Z-axis drive mode: manual focusing

measurement microscope
measurement microscope

measurement microscope characteristics

The instrument machine can detect the contour and surface shape of various complex workpieces efficiently,
such as sample plate, stamping part, cam, screw spinning, gear, forming milling cutter and other tools, tools and parts, as well as terminals, clocks, and metallisks.
widely used in machinery, mould, instrument, electronics, light industry and other industries, and is an indispensable measuring and verification equipment.
Instrument measurement accuracy: (3+l/200)μm
Resolution of X,Y coordinate: 1μm
Data processing system: multi-functional data processing system. Full English display can be used for multi-point sampling, coordinate rotation, point, line, distance, angle detection RS-232 data output, which can be directly imported into CAD.

Measurement microscope

widely used in machinery, electronics, aerospace, automotive, military, mould, and other industries for precision measurement.
1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.
2. In metrology terms, the machine can test and dimension width, length, height, thickness, diameter, angel, straightness, flatness, perpendicularity, circular degree, coaxiality, etc.
3. Combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.

measurement microscope
more product
measuring microscope
more product
measure microscope
more product
measurement microscope
more product
measurement microscope Basic functions listed

Image self correction function
Automatic edge finding and measurement function
Automatic recognition – frame selection recognition – point selection automatic measurement function
Multi function fitting construction measurement function
1. it can measure the distance from various points and lines to circles to circles
2. fitting new elements through other elements, such as: line segments, circles, arcs, etc. are synthesized by other multi-point fitting
3. establish a single line or circle element according to the requirements
Behavior tolerance measurement function
Various report generation function areas, support word, excel PDF and other reports and AutoCAD import and export functions
Powerful SPC quality control function

measurement microscope,measure instrument,contact us for data.
