long arm stereo microscope horizontal moving 420mm boom stand

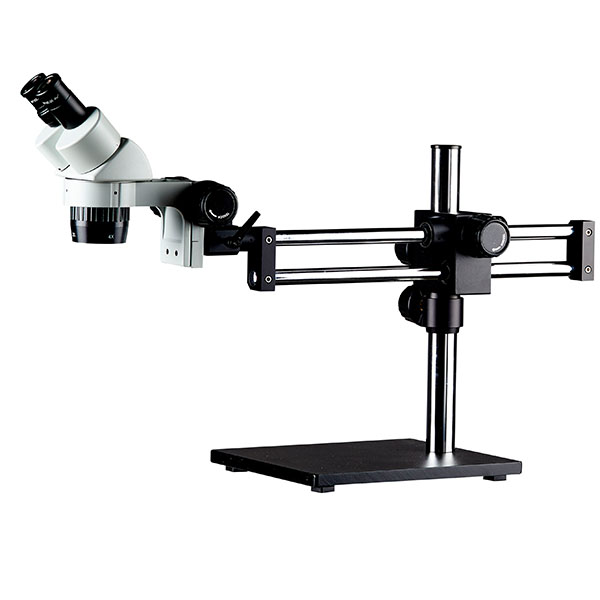

ST6024-STL5 Stereo microscope dual long arm horizontal moving 420mm

SKU: ST6024-STL5 Category:

Description

long arm stereo microscope is an optical microscope that provides a three-dimensional view of a specimen. It is also known by other names such as dissecting microscope and stereo zoom microscope. Dissecting microscope parts include separate objective lenses and eyepieces. As a result, you have two separate optical paths for each eye. The slightly different angling views to the left and right eyes produce a three-dimensional visual. Because it gives the three-dimensional view it is also called as the dissecting microscope .
Magnification: 20X-40X, 10X-80X with optional eyepieces and objectives
Eyepiece: WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece: WF10X/20mm, WF15X/15mm, WF20X/10mm
Main Body:
Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective: 2X/4X, 1X/3X, 1X/2X

long arm stereo microscope Boom Stand

Expand the scope of operation and observe the object in any direction
Vertical Post:380mm
Diameter:Ф37mm
Horizontal moving:420mm
Base Size:260x280x15mm
Focusing Mount 7616E focus block
