Leica microscope camera adapter c-mount 1x

Leica microscope camera adapter
C-mount 0.35x 0.55x 0.70x 0.80x 1.0x 1.5x
T2-mount 1.20X
M52-mount 2.25x

Category:

Description

Leica microscope camera adapter c-mount 1x

microscope adapter is a camera adapter to connect CCD/CMOS camera or digital eyepiece to Leica microscope trinocular port.

Leica microscope camera adapter c-mount 1x

C-mount adapters are supplied with or without optics. The purpose of the optics is to match the c-mount adapter with the size of the sensor within the digital camera in order to maximize the field of view. standard 25.4 mm C-mount,C-Mount adapter is a part that connects a camera to microscope.

Leica microscope camera adapter c-mount 1x

3.1 Convert the LEICA trinocular microscope phototube/head/port (have standard 34.4 mm,1.35 inch inner diameter for the insertion end to phototube) to traditional C-Mount.
3.2 mount type(25.4 mm or 1 inch diameter with 32 threads per inch), T2 mount type(M42x0.75 mm metric thread) or M52 mount type(M52x0.75mm metric thread);
3.3 With different built-in reduction lens (2.25X, 1.5X,1.2X,1X, 0.8X,0.63X, 0.5X, 0.35X) for achieving better field of view;
3.4 Can be installed in UIS trinocular tube such as specially designed for LEICA DM series biology microscopes and industrial microscopes;
3.5 Build of material stainless steel;
3.6 Telecentric optics with low light deficiency;
3.7 Parfocal with different microscope objective lenses;
3.8 Diffraction limited MTF;
3.9 Aperture totally coupled with LEICA CFI microscope objective exit pupil;

LEICA microscope camera adapter
2.25X M52-mount
LEICA camera adapter
1.5X c-mount
LEICA camera adapter 1.2X T2-mount
1.2X T2-mount

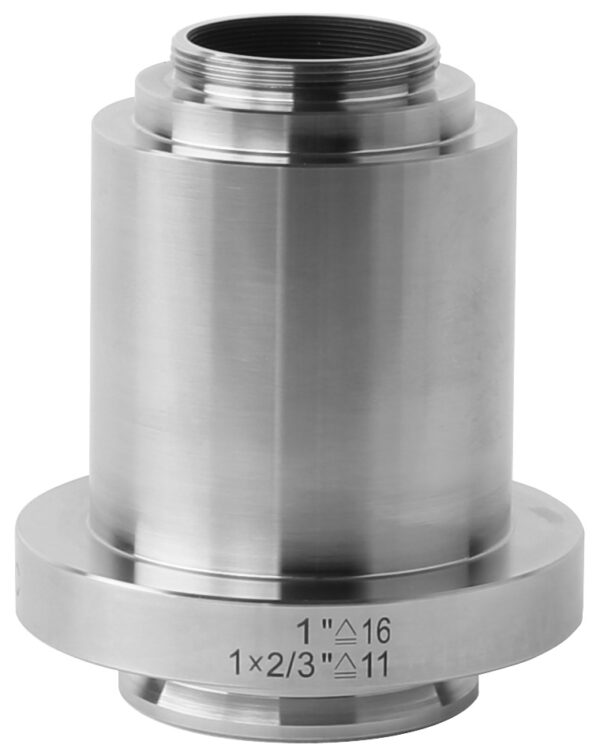

LEICA camera adapter 1.0X c-mount
1.0X c-mount

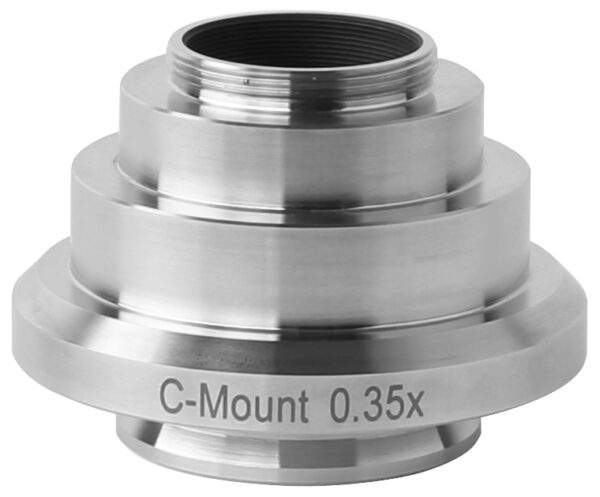

LEICA camera adapter 0.35X c-mount
0.35X c-mount

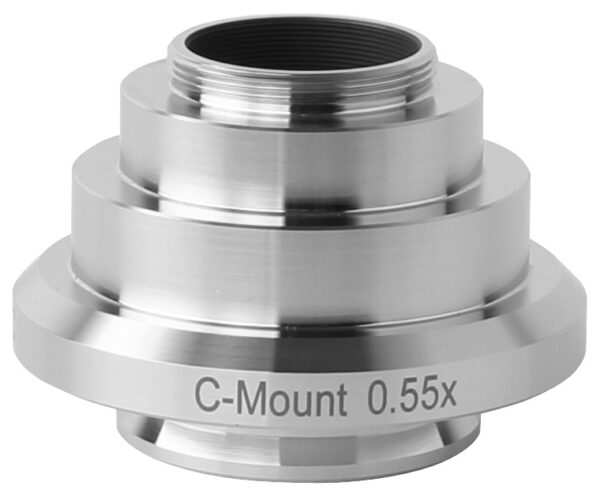

LEICA camera adapter 0.55X c-mount
0.55X c-mount

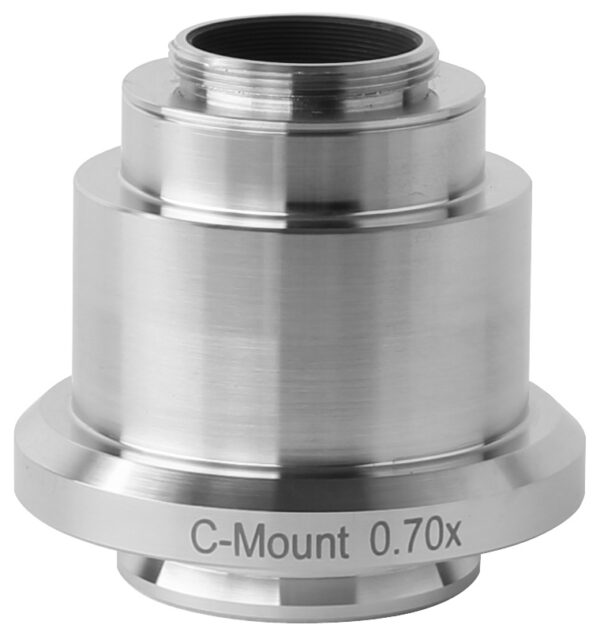

LEICA camera adapter 0.70X c-mount
0.70X c-mount
LEICA camera adapter 0.80X c-mount
0.80X c-mount
