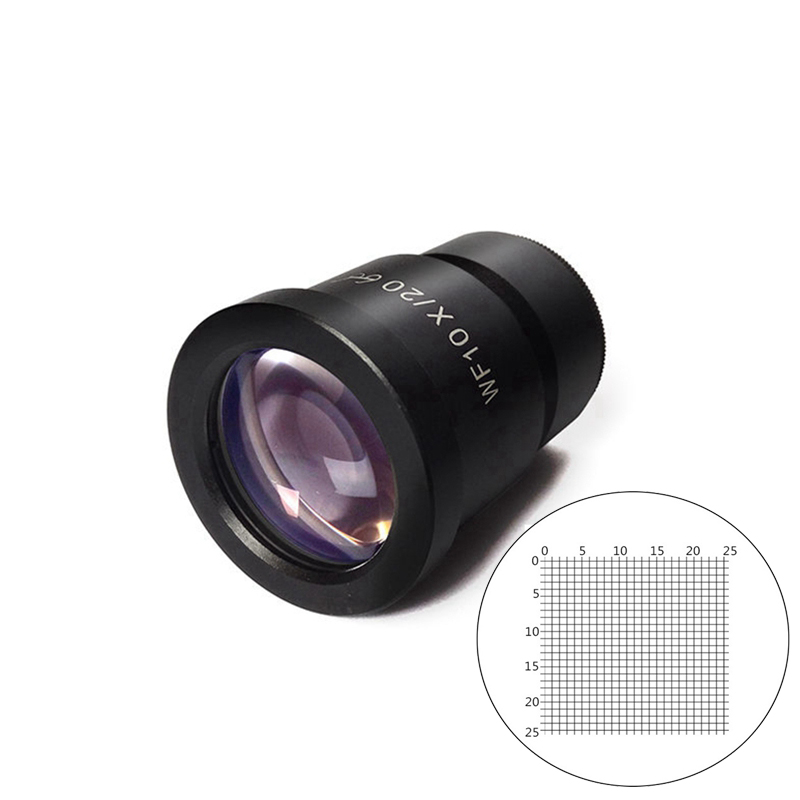

index grid pattern reticle graticule optic glass for eyepiece lens

NE10A
NE11A
NE34A
NE71
NE35

indexed grid

Category:

Description

index grid Eyepiece scale reticle  measure micrometer
The reticle is usually installed on the right eyepiece focal plane of the telescope. It is a thin surface of a polar surface that engraved the thin glass. The thin glass also participates in the imaging in theory, prolongs the focal length of the objective lens, and will have more or less influence on the length of the right eyepiece.
Verifiable resolution and optical transfer function
Reticle high requirements for cleanliness, any tiny dust could have large black spots in the observation, and the precision of the installation position of the reticle is extremely demanding, therefore, do not try to disassemble, if removed, must follow the original restoration.

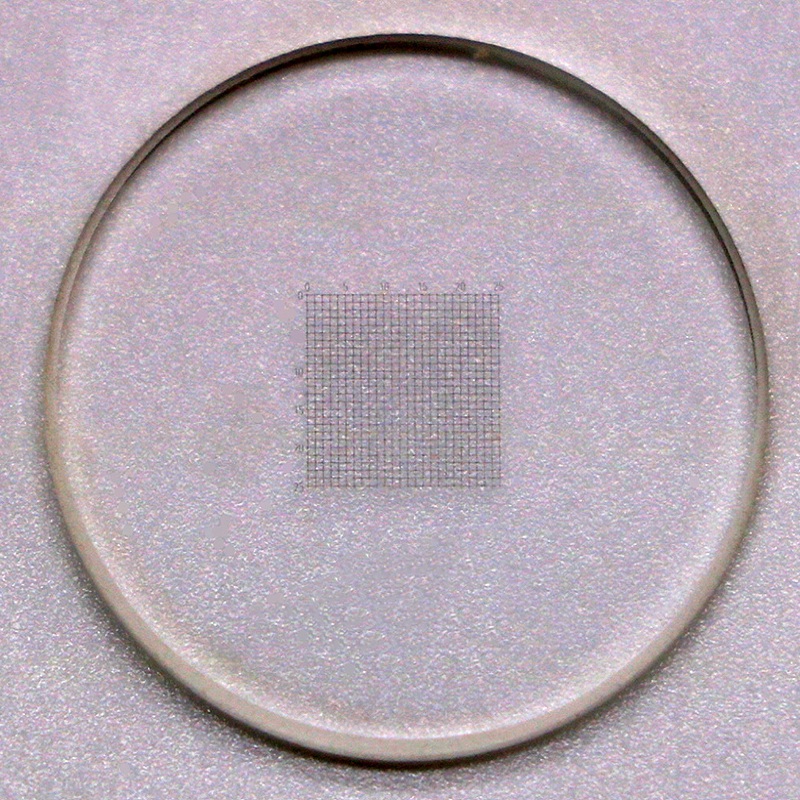

reticle

Outerline grid grid QTY Div Diameter Note
10*10mm 10*10 100 1mm D19/20/21/22/23/24mm
5*5mm 5*5 25 1mm
10*10mm 20*20 400 0.5mm
5*5mm 10*10 100 0.5mm
6*6mm 30*30 900 0.2mm
8*8mm 40*40 1600 0.2mm
10*10mm 100*100 1000 0.1mm
