Focusable eye piece 25X focusing diopter adjustment oluar lens diopter adjustment wide field eyepiece high eye point

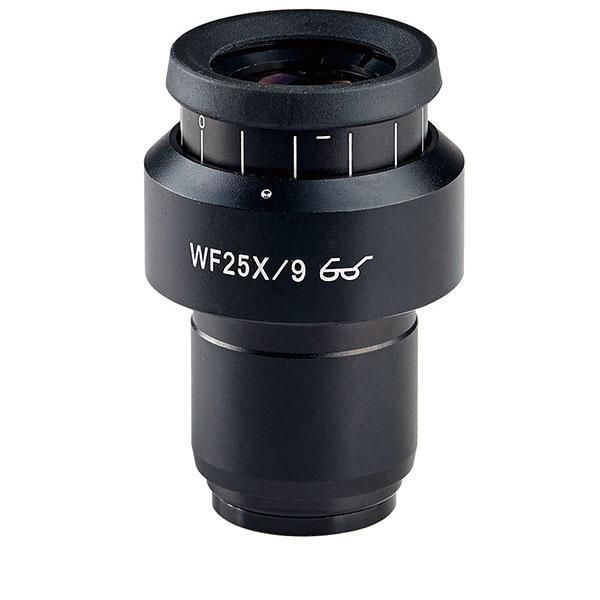

DHWF25X/9 focusable lens



Microscope Eye piece ocular lenses that a person uses to view a specimen. Most dissecting microscopes have two ocular lenses set at a magnification of 10×. However, you can increase the magnification of a stereo microscope simply by upgrading the ocular lenses. through which the real image forms an upright and magnified virtual image.
Microscope magnification is the microscope’s ability to enlarge an image of an object through a series of lenses to a size multiple times larger than the actual size of the object.
Microscope Magnification = Eyepiece Magnification X Objective Magnification

Diopter Adjustable 25X Stereo Microscope Eyepieces
High eyepoint Wide Angle Lens High Eye Point Eyepiece
Material:optical glass + metal
With the rubber eye guards cups
Magnification: 25X
Field of View: 9mm
Mounting Size (in diameter): 30.5 mm or 30mm
Features: diopter adjustment,high eye point,wide field, optical lens, Suit stereo microscope

Eyepiece is an integral part of the microscope. It is used to observe the optical system into an image of the visual optics. It is usually a combination of several lenses made with a larger field of view and perspectives magnification. Generally divided into Huygens eyepieces, wide-angle eyepieces, and other flat-field eyepieces. The function is to eliminate aberration, so that the image will be more clear.
pdf focusable 25X diopter adjustment eyepiece wide field
