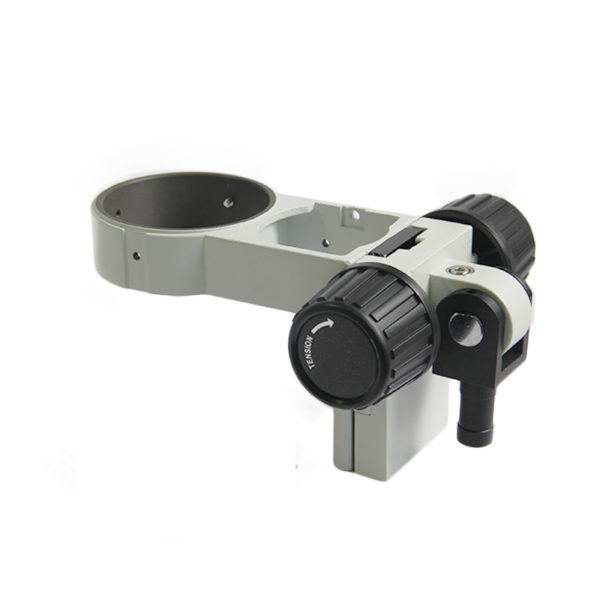

Focus mount E arm 76mm 16mm focusing rack of microscope tension

FR7616 E arm Adaptor 16mm for
boom stands or articulating arm stands

Description

Focus mount E arm 76mm 16mm focusing rack of microscope tension

Focus mount E arm parts  set up the correct distance between the lens of the stereo microscope body and the top of your sample, in order sample to appear in focus when looking through the microscope.adjusted by Coarse and fine mechanism knob and tension adjustment.Other name focus mount, focus bracket, focus rack, focus block,focus holder.

product
product
product
product
Focus mount E arm 76mm 16mm focusing rack of microscope tension

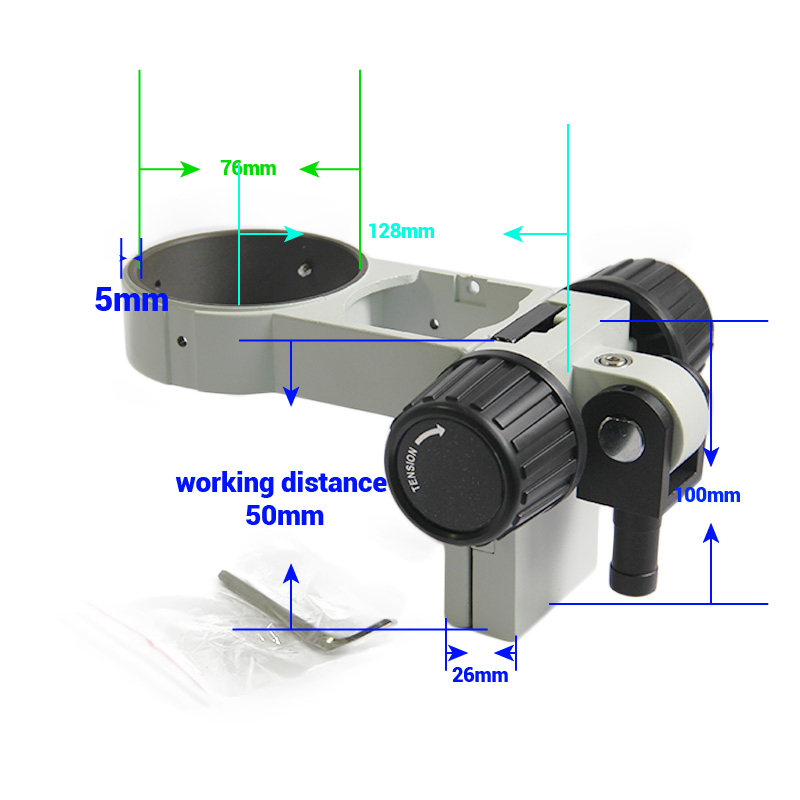

Focus block Hole Diameter   15.875mm
Focus block Ring Diameter   76mm

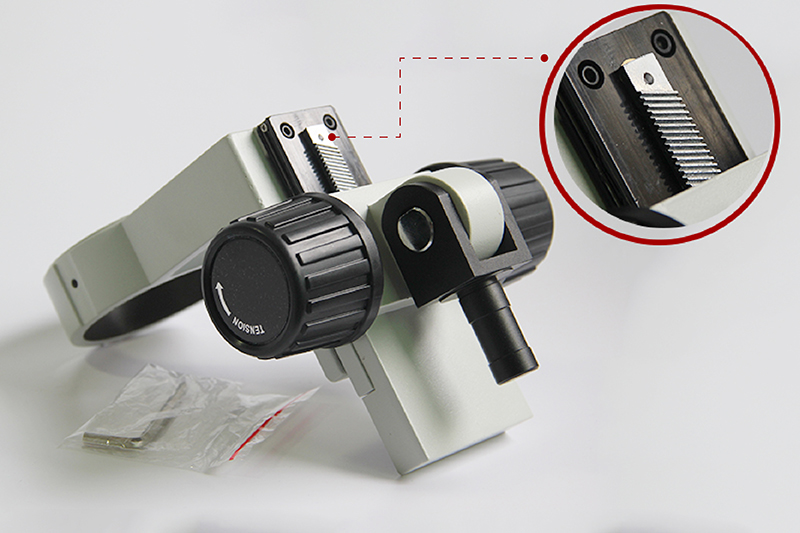

Focus Mechanism    Rack AND Pinion with Tension Control
Focus System   Coarse
Focusing Distance   50mm in vertical direction

With coarse focus adjustment
Focus mount E arm 76mm diameter ring with 15.875mm (5/8″) adapter can be mounted on any of our boom stands or articulating arm stands; Pinion coarse focus adjustment. 50mm focusing distance in vertical direction.

pdf 76mm 16mm E arm focus rack mount focusing bracket
