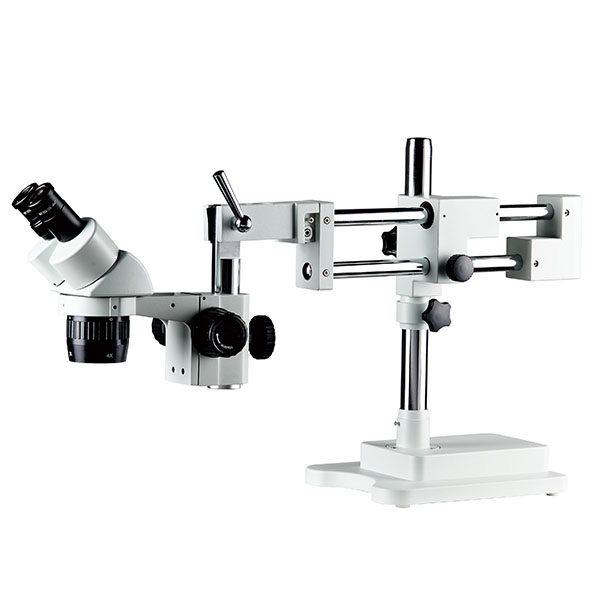

Dual arm microscope stand microscope stand parts

ST6024-STL2
Dual arm microscope stand

SKU: ST6024-STL2 Category: Stereo microscope

Description

Stereo microscope Dual Arm Ball Bearing Boom Stand binocular eyepiece
Dual arm microscope stand microscope stand parts is an optical microscope that provides a three-dimensional view of a specimen. It is also known by other names such as dissecting microscope and stereo zoom microscope. Dissecting microscope parts include separate objective lenses and eyepieces. As a result, you have two separate optical paths for each eye. The slightly different angling views to the left and right eyes produce a three-dimensional visual. Because it gives the three-dimensional view it is also called as the dissecting microscope.
Magnification: 20X-40X, 10X-80X with optional eyepieces and objectives
Eyepiece: WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece: WF10X/20mm, WF15X/15mm, WF20X/10mm
Main Body:
Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective: 2X/4X, 1X/3X, 1X/2X

Dual arm microscope stand microscope stand parts Ball Bearing

Expand the scope of operation and observe the object in any direction
Vertical Post:380mm
Diameter:Ф32mm
Horizontal moving:235mm
Base Size :210x260x50mm
Suitable Focusing Mount 76mm32mm

Hits: 4

More information

Dual Power Binocular Stereo Microscope, Paired 10X Widefield Eyepiece, 1X & 2X Objectives, 10X/20X Magnification, Upper and Lower LED Lighting

About this item

45° inclined binocular head, which rotates 360°. Left ocular tube is equipped with a (+/5) diopter adjustable, to compensate for eye-strength difference when needed

The optical design ensures that images remain sharp, crisp, and focused, throughout the entire magnification range
