Diopter adjustable eyepiece 15X high eyepoint Wide field stereo microscope focusing lens mount 30mm

Description

Diopter adjustable eyepiece 15X high eye point Wide field
Microscope Eyepiece ocular lenses that a person uses to view a specimen. Most dissecting microscopes have two ocular lenses set at a magnification of 10×. However, you can increase the magnification of a stereo microscope simply by upgrading the ocular lenses. through which the real image forms an upright and magnified virtual image.
Microscope magnification is the microscope’s ability to enlarge an image of an object through a series of lenses to a size multiple times larger than the actual size of the object.
Microscope Magnification = Eyepiece Magnification X Objective Magnification

Diopter adjustable eyepiece 15X high eye point Wide field

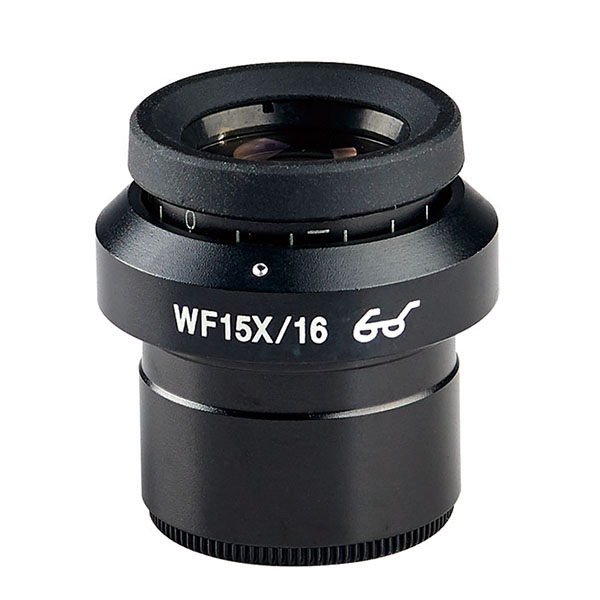

High Eyepoint Eyepiece Wide View WF15X/16 Wide Angle Lens Mounting Size 30 mm for Stereo Microscope
Specification:
Magnification : WF15x
Field of view : 16 mm
Mounting size: 30 mm
Feature : High eyepoint and wide angle lens
Diopter adjustment
Ideal for Stereo Microscope
Ocular lenses are the eyepiece that a person uses to view a specimen. Most dissecting microscopes have two ocular lenses set at a magnification of 10×. However, you can increase the magnification of a stereo microscope simply by upgrading the ocular lenses. This should be relatively easy to do since manufactures usually indicate the magnification levels of these parts of the microscope.

Diopter adjustable eyepiece Wide-angle eyepieces generally refer to eyepieces with a field of view exceeding 50°. These eyepieces all adopt a special structure and have a wide field of view, also known as wide-field or large-field eyepieces, with a large observation range. Therefore, the price is much higher than that of ordinary eyepieces.
