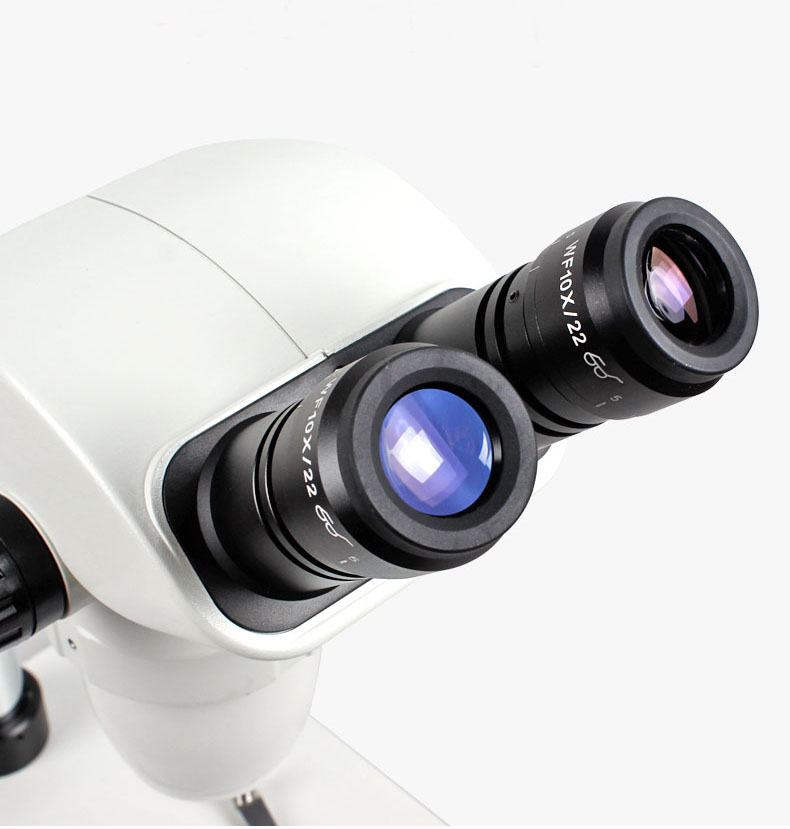

Diopter adjustable eye piece 10X focusing lens high eye point wide field for stereo microscope

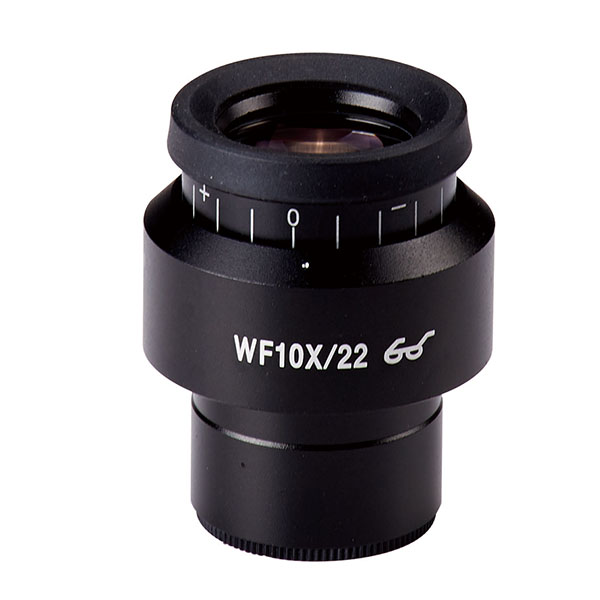

DHWF10X/22 diopter adjustment



eye piece Microscope Eyepiece ocular lenses that a person uses to view a specimen. Most dissecting microscopes have two ocular lenses set at a magnification of 10×. However, you can increase the magnification of a stereo microscope simply by upgrading the ocular lenses. through which the real image forms an upright and magnified virtual image.
Microscope magnification is the microscope’s ability to enlarge an image of an object through a series of lenses to a size multiple times larger than the actual size of the object.
Microscope Magnification = Eyepiece Magnification X Objective Magnification

10X eyepiece diopter adjustment,High eye point Wide Field Eyepiece
Material:optical glass + metal
With the rubber eye guards cups
Magnification: WF10X
Field of View: 22mm
Mounting Size (in diameter): 30.5 mm or 30mm
Suit Microscope: stereo microscope
Features: diopter adjustment,high eye point,wide field, optical lens for Stereo Microscope

Eyepiece is an integral part of the microscope. It is used to observe the optical system into an image of the visual optics. It is usually a combination of several lenses made with a larger field of view and perspectives magnification. Generally divided into Huygens eyepieces, wide-angle eyepieces, and other flat-field eyepieces. The function is to eliminate aberration, so that the image will be more clear.

pdf 10X eyepiece diopter adjustable wide field
