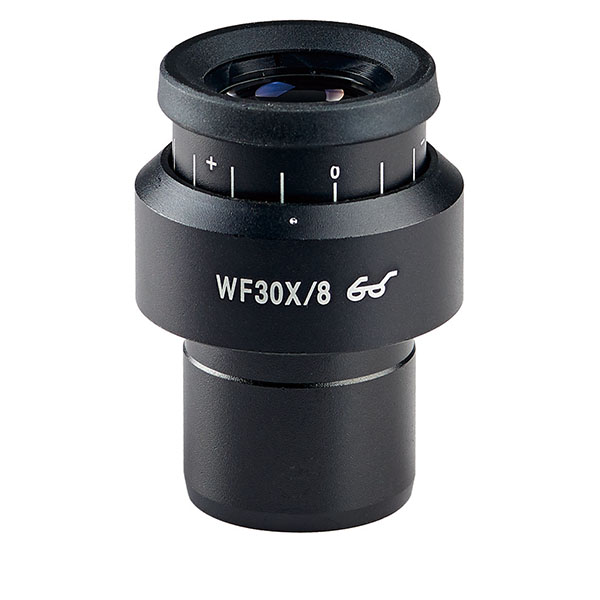

Diopter adjustable 30X eyepiece lens focusing eyepiece high eye point wide field focusable lens

DHWF30X/8 diopter adjustment



microscope Ocular lenses are the eyepieces that a person uses to view a specimen. Most dissecting microscopes have two ocular lenses set at a magnification of 10Ă—. However, you can increase the magnification of a stereo microscope simply by upgrading the ocular lenses. This should be relatively easy to do since manufactures usually indicate the magnification levels of these parts of the microscope.
Wide Field 30X High Eye-point Eyepiece Diopter Adjustable focusable eyepiece

Material: optical glass + metal
Magnification: 30X
Field of View: 8mm
Mounting Diameter (in diameter): 30mm
Feature: diopter adjustable, high eye-point, plan scope eyepiece,Suit Microscope: stereo microscope

Eyepiece is an integral part of the microscope. It is used to observe the optical system into an image of the visual optics. It is usually a combination of several lenses made with a larger field of view and perspectives magnification. Generally divided into Huygens eyepieces, wide-angle eyepieces, and other flat-field eyepieces. The function is to eliminate aberration, so that the image will be more clear.
pdf 30X eyepiece diopter adjustment high eye point wide field lens
