digital microscope head binocular zoom body tube 3m pixel

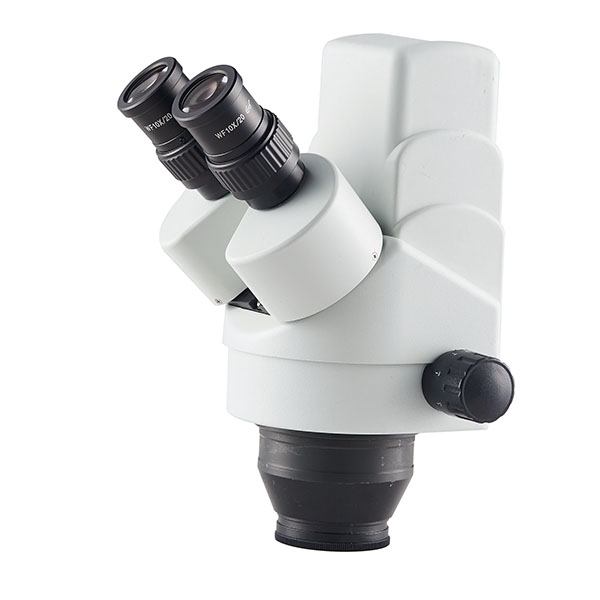

SZM7045V digital zoom body
digital microscope head

Category:

Description

Digital Microscope can observe the object in three dimensions within the field of view, providing crystal clear sharp images with high resolution and good depth of view, having long working distance.Digital Microscope is easy to operate and get the images intuitively, widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement. You can save, enlarge and print the pictures displayed at the screen. After installing the attached drive, you can get measured data of Straight Lines Measurement, Curve Measurement, Arc Length Measurement, Angular Measurement. Meanwhile, these data can be loaded into Excel or printed out directly.

Digital Microscope details

Vision Facilities 3.0M pixel 1/2’’ COMS
Resolution 2048*1536 Effective Pixels
Pixel Size 3.18um*3.18um
Transmission Speed 7f/s@2048*1536
Signal to Noise Ratio 0.9v/lus-secx
Scanning Mode Progressive Scanning
Operation System Windows2000/XP
Data Interface USB2.0(480Mbit/sec)
Power Supply USB2.0
Operating Temperature 0℃-50℃
COMS Optional 1.3Mp, 3Mp, 5Mp

Magnification: 7X-45X, 3.5X-270X with optional eyepieces and objectives
Eyepiece: WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece: WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm
Main Body: Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective: 0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1
Aux Lens: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
