64 Led ring light microscope illumination parts

64LED 60mm
led ring light
microscope illumination accessories

SKU: YK-S64T Category:


microscope illumination parts

The LED brightness is adjustable and soft without flicker and good consistency. This kit is equipped with three screws in the interface port to connect microscope objectives of different diameters. The available voltage of this kit is from AC85 to AC260V. It is an ideal durable cool light source for microscopes.

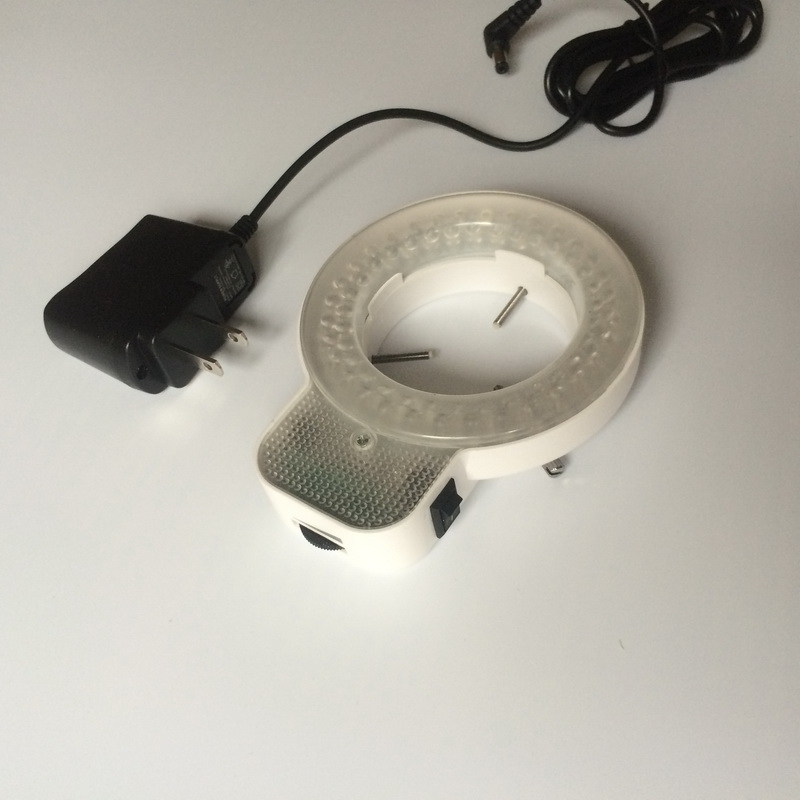

led ring light YK-S64T

Outer diameter : 98mm
Inner diameter: 61mm
Input voltage:90V-264V
Output voltage:DC12V
Brightness adjust:0-100%
Working distance:50-250mm
Quantity of LED:64PCS
Brightness:16000Lux at height of 100mm
Color of light:6400K

microscopes led illumination effect and application
Measuring and observing and testing instruments illumination
Viewing and observing instruments and accessories illumination
Laboratory and Measuring and Observing and Testing Equipment lighting
