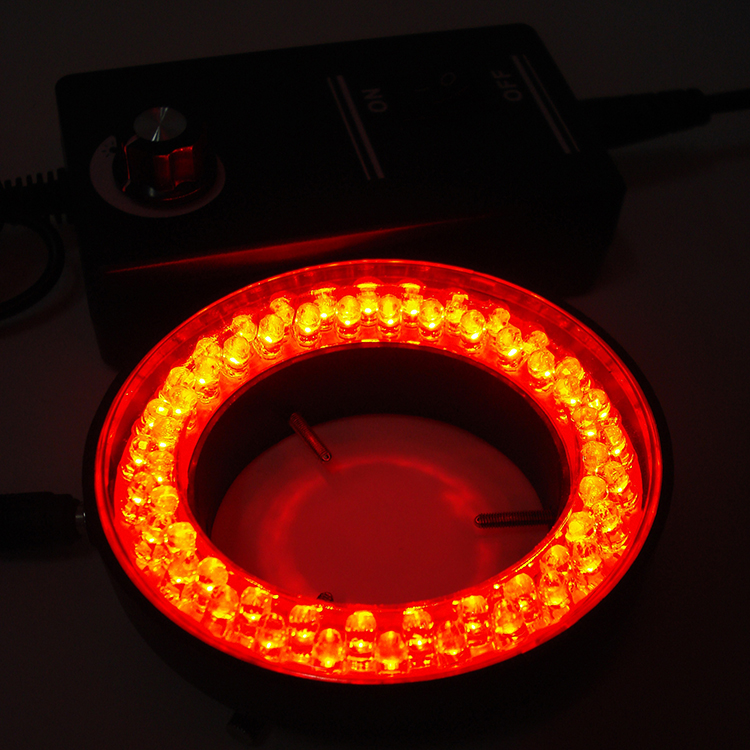

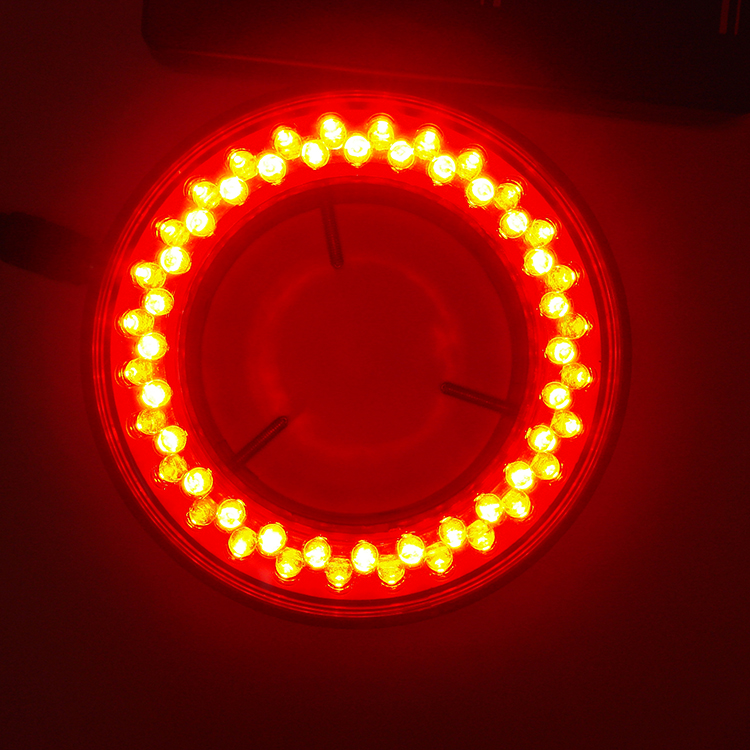

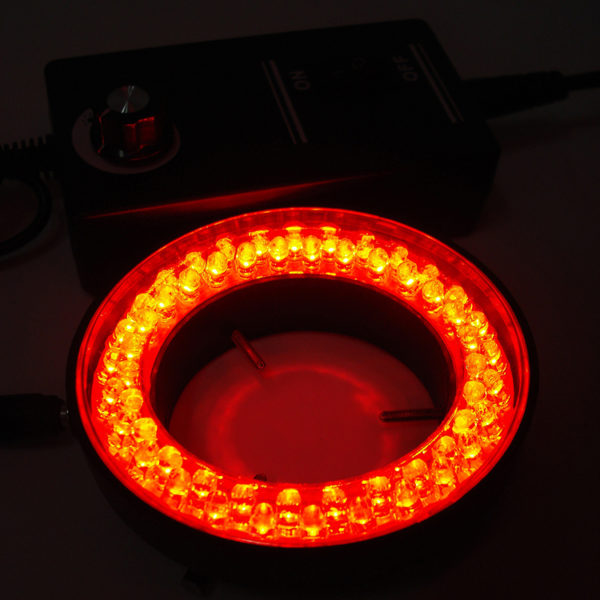

620nm red color microscope led light lab instrument light source microscope illumination

Red lightness


red color microscope led light . The LED brightness is adjustable and soft without flicker and good consistency. This kit is equipped with three screws in the interface port to connect microscope objectives of different diameters. The available voltage of this kit is from AC85 to AC260V. It is an ideal durable cool light source for microscopes.

red color microscope led light microscope illumination 620nm

machine vision lighting medical photography led lighting
LED light color: Red
Red light wavelength: 620NM
Technical parameters:
Outer diameter: 95mm
Inner diameter: 60mm
Lamp shell height: 30mm
Ring lamp power: less than 5W
Input voltage: 110V-265V
Output voltage: DC12V
Brightness adjustment: 0~100%
Focal length: 100mm
Effective working distance: 50-200mm
When the height is 150mm, the brightness is above 100000LUX.
LED quantity:56pcs or 60pcs
Current: 20mA voltage 3.2-3.3V

red color lightness wavelength 620nm

red color microscope led light Scope of application:

Microscope illumination
Machine vision system lighting
ecological photography lighting
medical photography lighting
Instrument lighting and so on
pdf microscope light red lightness
