microscope fine and coarse focus mount
Focusing holders hold the microscope body and contain the mechanism that raises or lowers the body to focus on the specimen. Complete stands include their own focusing holders. But for other kinds of tasks, however, it may be necessary to mount the microscope body on a boom arm stand or directly onto a machine or some other surface. The focusing holders below offer a range of options for such applications. also name focus rack, focus block, focus bracket, focus mount,focus holder

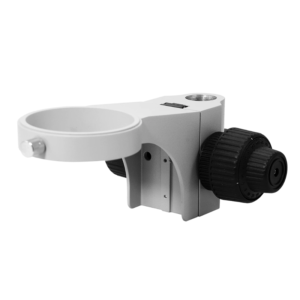

fine and coarse focus mount rack block

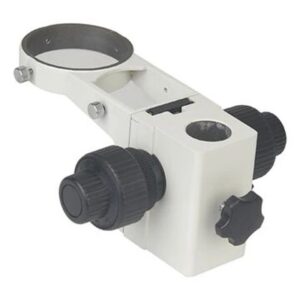

Coarse and Fine Focus Block/Holder focus holder with coaxial coarse and fine focus for high magnification applications where precise fine focus adjustment is required. Rack and pinion mount allows smooth, precise focusing over 33mm of travel. Coarse and fine focus mechanism incorporates a slip clutch and tension adjustment.
Focusing holders hold the microscope body and contain the mechanism that raises or lowers the body to focus on the specimen. Complete stands include their own focusing holders. But for other kinds of tasks, however, it may be necessary to mount the microscope body on a boom arm stand or directly onto a machine or some other surface. The focusing holders below offer a range of options for such applications.

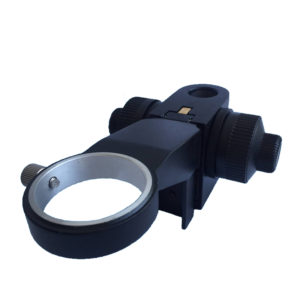

fine and coarse focus mount with focusing knob
Coarse vs Fine Adjustment difference between coarse and fine adjustment is the range that they have. The coarse adjustment covers the entire range from minimum to maximum. In contrast, the fine adjustment only covers a fraction of the entire range. The bare minimum range for the fine adjustment is the discrete step increment of the coarse adjustment, in order to cover the entire range. It can also be larger, depending on the designer of the device.
character:
1.Coarse adjustment has steps in large increments while fine adjustment has steps in much smaller increments
2.Coarse adjustment covers the entire range while fine adjustment only covers a fraction of the entire range
Coarse adjustment: Brings the specimen into general focus.
Fine adjustment: Fine tunes the focus and increases the detail of the specimen.
Fine Focus a knob used to fine tune the focus of a specimen in conjunction with the coarse focus. The diameter of the circle of light seen through a microscope. The ability to achieve a clear image, typically achieved by moving either the eyepiece tubes or the stage.
